3.2-20.2 MM Double Straight Hole Cutting Tools Tungsten Carbide Rod
Description:
-- Size: diameter 3.2-20.2mm, length 330mm, more sizes can be
customized;
- There are two cooling holes;
-- Ground and unpolished;

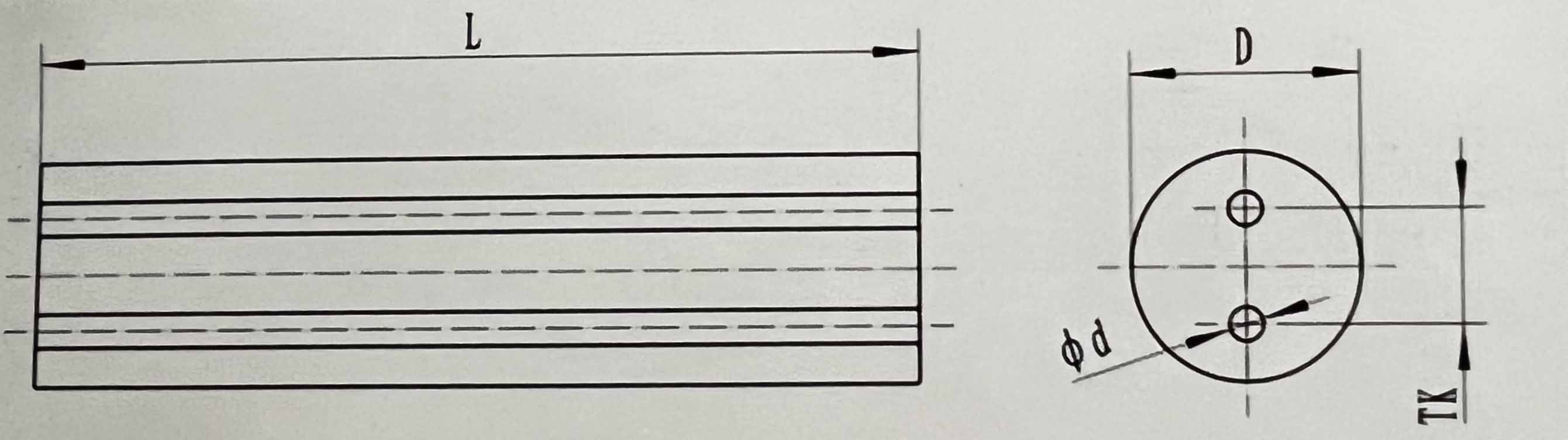

| D Coarse Embryos | TK Double Hole Spacing | d Inner Hole | D Grinding | L The Length Of The |
Outer Diameter
(MM) | The Tolerance Tol.(+1.5MM) | Pitch TK
(MM) | The Tolerance Tol.(+1.5MM) | The Inner Diameter d
(MM) | The Tolerance Tol.(+1.5MM) | h 6(MM) | The Tolerance Tol.
(+1.5MM) |
| 3.2 | +0.3 | 1.5 | ±0.15 | 0.5 | ±0.1 | 3.0 | 330 |
| 4.2 | +0.3 | 2 | ±0.2 | 0.6 | ±0.1 | 4.0 | 330 |
| 5.2 | +0.3 | 2.6 | ±0.2 | 0.8 | ±0.1 | 5.0 | 330 |
| 6.2 | +0.4 | 3 | ±0.2 | 0.9 | ±0.1 | 6.0 | 330 |
| 7.2 | +0.4 | 3.2 | ±0.2 | 1.0 | ±0.15 | 7.0 | 330 |
| 8.2 | +0.4 | 3.5 | ±0.2 | 1.2 | ±0.15 | 8.0 | 330 |
| 9.2 | +0.4 | 3.7 | ±0.3 | 1.4 | ±0.15 | 9.0 | 330 |
| 10.2 | +0.4 | 4.3 | ±0.3 | 1.6 | ±0.15 | 10.0 | 330 |
| 11.2 | +0.4 | 4.8 | ±0.4 | 1.8 | ±0.15 | 11.0 | 330 |
| 12.2 | +0.4 | 5.0 | ±0.4 | 1.8 | ±0.15 | 12.0 | 330 |
| 13.2 | +0.4 | 5.5 | ±0.5 | 1.8 | ±0.25 | 13.0 | 330 |
| 14.2 | +0.5 | 5.5 | ±0.5 | 1.8 | ±0.25 | 14.0 | 330 |
| 15.2 | +0.5 | 5.5 | ±0.5 | 1.8 | ±0.25 | 15.0 | 330 |
| 16.2 | +0.5 | 5.5 | ±0.5 | 1.8 | ±0.25 | 16.0 | 330 |
| 17.2 | +0.5 | 6.0 | ±0.5 | 2.0 | ±0.25 | 17.0 | 330 |
| 18.2 | +0.5 | 6.0 | ±0.5 | 2.0 | ±0.3 | 18.0 | 330 |
| 19.2 | +0.5 | 6.0 | ±0.5 | 2.0 | ±0.3 | 19.0 | 330 |
| 20.2 | +0.5 | 6.0 | ±0.5 | 2.0 | ±0.3 | 20.0 | 330 |
Applications:
Carbide double straight hole round rod is mainly suitable for
drill, end milling cutter, reamer. It can also be used for cutting,
stamping and measuring tools. It is used in papermaking, packaging,
printing, non-ferrous metal processing industries. In addition, it
is widely used for machining high speed steel cutting tools,
carbide milling cutter, carbide cutting tools, cutting tools of
NAS, air tools, carbide drill, milling cutter core bit, high speed
steel, taperd milling cutter, the metric system of milling cutter,
the micro end milling cutter, hinge, electronic tools, ladder
drill, metal cutting saw, double margin drill, a gun, Angle cutter,
Carbide rotary files, carbide cutting tools, etc.
Package:
step 1, wrapped carbide strips in plastic foam to avoid carbide
strips to broke
step 2, put the carbide strips in inner small carton box
step 3, put the inner box into outter carton and fill the carton
with foamed plastic
step 4, wrap the carton with pa
Features:
1. Made from 100% virgin raw material
2. HIP sintering
3. Stable chemical properties
4. High hardness, good compactness
5. Excellent performance and good wear / corrosion resistance
6. Blanks, high machining accuracy / precision
7. Various grades of tungsten carbide available
8. OEM customized sizes available
9. Factory’s offer
10. Strict products quality inspection
Company introduction:
Chengdu Lianxiang New Materials Co., Ltd. is located in Sichuan
Chengdu Pixian County. Main carbide materials, (cold pier, bar,
sheet, mines, woodworking blade, welding blade, machine blade,
electronic specifications board, non-standard, etc.) hard alloy
moulds, (cold pier, powder metallurgy die, drawing die, etc.)
carbide internal and external research, flat grind, cut, discharge,
processing, product such as gigantic should treatment etc. In
hardware, tools, a mold industry recognized by our customers.
Companies adhering to the "first-class quality assurance, maintain
a level of credibility" business philosophy, adhere to the
"customer first" principle to provide our customers with quality
services. Welcome calls to negotiate business!
